HERMLE

A reliable and efficient 5-axis vertical machining center with an 18,000 RPM spindle ideal for precision milling. Features include a 32-slot tool storage, an internal cooling system and continuous 5-axis capabilities.

• Traverse path: X: 600 mm, Y: 450 mm, Z: 450 mm
• Body: Ø 280 mm (spindle table surface)
• Collision circle: Not specified
• Vertical table clearance: Not specified

• Rotational speed: 18,000 RPM
• Rapid traverse linear X-Y-Z: Not specified
• Swiveling rotary table: Not specified
• Max. table loading: Not specified

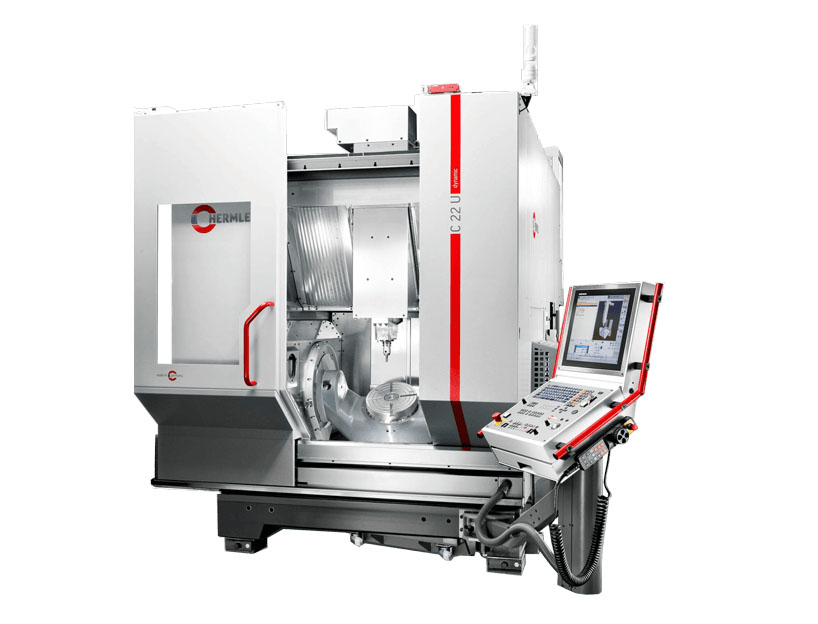

The HERMLE C22 Dynamic is a versatile 5-axis machining center, enhancing Owens Industries' capability to produce high-quality parts with exceptional accuracy and tight tolerances. The C22’s compact footprint offers extended traverse paths (450 x 600 x 330 mm) and a large working area relative to its size. Advanced features include high-speed spindles (up to 42,000 RPM), rapid linear traverse speeds of up to 50 m/min and a swiveling rotary table capable of handling loads up to 300 kg. These capabilities allow Owens to perform complex machining tasks with increased flexibility, precision and efficiency, making the C22 ideal for intricate component production across various industries.

• Traverse path: 450 x 600 x 330 mm
• Body: Ø 450 / H 370
• Collision circle: Ø 610 mm
• Vertical table clearance: max. 470 mm

• Rotational speed: 15000/18000/25000/30000/42000 1/min
• Rapid traverse linear X-Y-Z: 30 (50) m/min.
• Swiveling rotary table: ø 320 mm
• Max. table loading: 300 kg

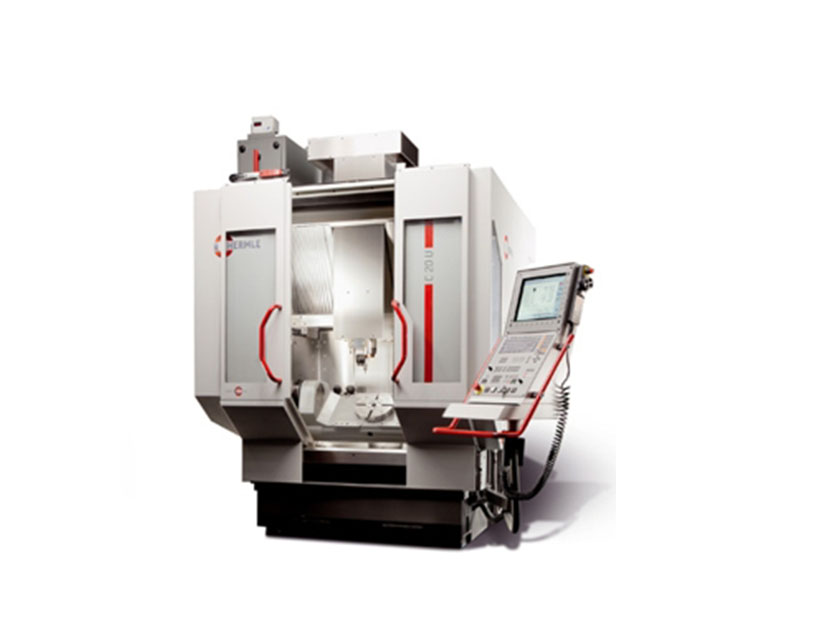

The HERMLE C40 dynamic is a high-performance 5-axis machining center, enhancing Owens Industries' precision machining capabilities. This machine has a HEIDENHAIN iTNC 530 control for dynamic positioning with rapid traverse speeds of up to 60 m/min. A large working area (X = 850 mm, Y = 700 mm, Z = 500 mm) and Ø 800 mm NC swivel rotary table provide ample space for medium-sized components. The C40's main spindle, capable of reaching 18,000 rpm, is paired with an internal coolant supply system for high-speed, accurate machining. With 38 automatic tool changes and advanced features like a Renishaw probe, the C40 Dynamic allows Owens to achieve unparalleled precision and efficiency in complex CNC tasks.

• Traverse path: 850 mm, Y: 700 mm, Z: 500 mm
• Body: Not specified
• Collision circle: Ø 1,000 mm (interference circle)
• Vertical table clearance: Not specified

• Rotational speed: 18,000 RPM
• Rapid traverse linear X-Y-Z: 60,000 mm/min
• Swiveling rotary table: Ø 800 mm (NC-swivel rotary table)
• Max. table loading: 1,400 kg

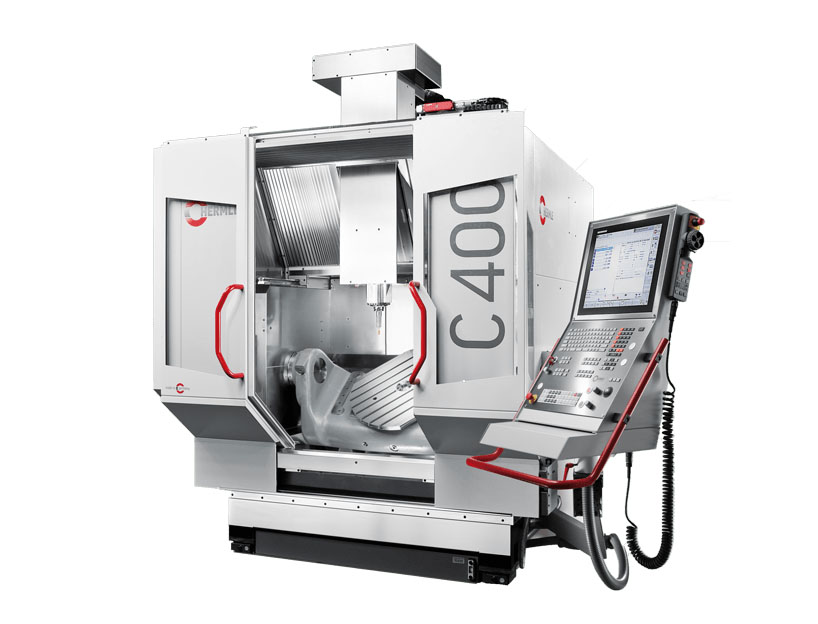

The HERMLE C400 enhances Owens Industries’ precision capabilities as a state-of-the-art 5-axis machining center. With its advanced technology and robust design, including a mineral cast low-vibration machine bed, the C400 provides exceptional accuracy and surface finish. Its high cutting volume and efficient chip management system achieve the most complex machining tasks with unparalleled precision. This addition to Owens' CNC arsenal further solidifies our commitment to delivering top-tier, ultra-precise components to our clients.

• Traverse path: 850 x 700 x 500 mm
• Body: Ø 650 / H 500 mm
• Collision circle: Ø 885 mm
• Vertical table clearance: max. 625 mm

• Rotational speed: 15000/18000 1/min
• Rapid traverse linear X-Y-Z: 35 m/min.
• Rigid clamping table: 1070 x 700 mm
• Max. table loading: 2000 kg
